Metamark MD5 White Gloss Digital Vinyl, 54 in × 50 yd
Metamark MD5 White Gloss Digital Vinyl, 54 in × 50 yd
SKU:MD5-100-137-50Y
Couldn't load pickup availability
Metamark MD5 is a white gloss polymeric calendered digital vinyl for graphics on flat or slightly curved surfaces, including vehicle graphics, retail signage and window graphics. It uses a permanent clear solvent-based acrylic adhesive.
- SKU: MD5-100-137-50Y
- Roll size: 54 in × 50 yd
- Face film: White gloss polymeric calendered vinyl, 70 µm nominal
- Adhesive: Permanent clear solvent-based acrylic
- Release liner: PE-coated layflat kraft, 140 gsm nominal
- Matched overlaminate: MetaGuard MG-700 Series
Confirm substrate suitability and use the appropriate print profile. Follow the manufacturer’s printing, drying and application instructions.
Manufacturer technical and care resources
- Metamark MD5 technical data sheet (PDF): V1.1_26; specifications, printing, drying, application and storage instructions for this family.
- Metamark regional durability guide (PDF): explains climate zones and vertical, non-vertical and horizontal exposure.
- Cleaning and Maintenance of Vinyl (PDF): for printed graphics, this care guidance applies where the graphic has a vinyl overlaminate.
For this standard adhesive family, the technical sheet permits wet or dry installation, subject to substrate suitability. Do not transfer that permission to MetaScape air-release versions. Test the intended substrate and print process, use the correct print profile, and follow the sheet's drying guidance before laminating or installing. Drying can take longer than the stated minimum under some printing and drying conditions.
The sheet's unprinted-film durability reference is based on vertical Northern European exposure, not a blanket US or finished-graphic guarantee. Use the regional guide for the actual location and exposure, and verify the complete ink, film and laminate system.
These manufacturer family documents show metric roll presentations and other family choices. The offered configuration here remains 54 in x 50 yd, as listed above; the documents do not change that SKU, finish, adhesive or roll length. A family-level MG-700 reference does not establish a verified available US laminate SKU or size.
Matched matte overlaminate
Metamark identifies MetaGuard MG-700 Series as the matched overlaminate family for MD5. The MG702 clear matte overlaminate, 54 in × 50 yd has the same listed 54-inch width as this print film. Choose it when a matte finish is wanted.
This matched-family recommendation is limited to solvent, eco-solvent and latex prints on flat or slightly curved graphics. Allow the print to cure fully before laminating and test the actual print, laminate and substrate. UV inhibitors in the laminate do not establish suitability for UV-cured inks; no UV-print recommendation or general system warranty is made here.
For installation onto the substrate, MD5 uses the standard adhesive and permits wet or dry application where the substrate is suitable.
Both listed rolls are 50 yards long. Plan the usable printed length and allowance for setup and trimming rather than assuming every yard can be laminated.

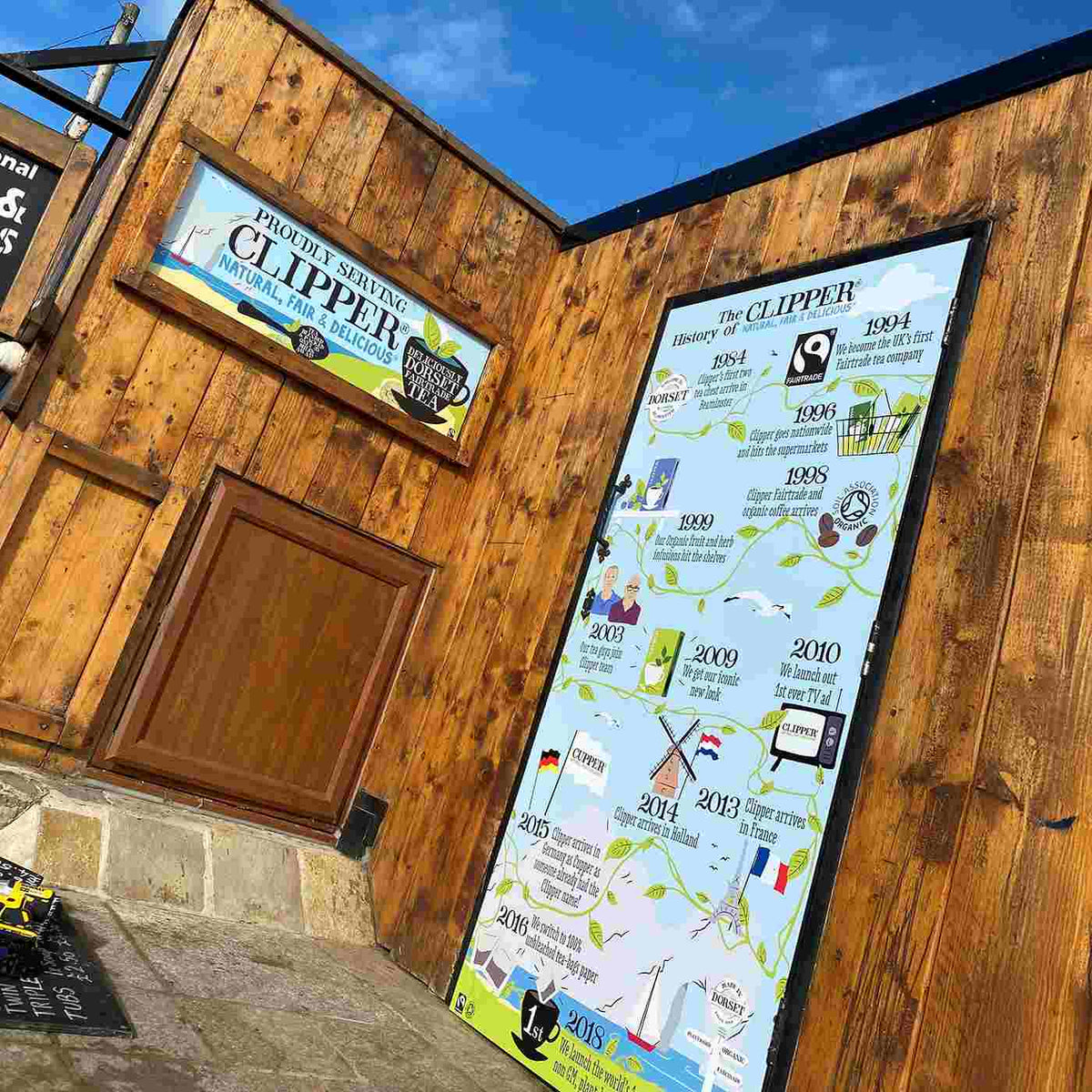

About the application photo: Manufacturer application example from the Metamark MD5 gallery. Representative signage image; the exact 54 in × 50 yd white-gloss roll and packaging are not shown.
Selecting your material
Selecting your material
Select every available option, then check the size, color, SKU and price before adding to your cart. Product specifications and application information are included in the description above.
Need help matching a material or choosing a size? Call 330-747-6139 or text us.
