MACtac
MACtac PERMACOLOR Gemini XT PP5600 Clear Polyester Mounting Film, 51 or 54 in x 150 ft
MACtac PERMACOLOR Gemini XT PP5600 Clear Polyester Mounting Film, 51 or 54 in x 150 ft
SKU:PP5651L150
Couldn't load pickup availability
Choose a 51- or 54-inch width. Each option is one full 150-foot roll of clear polyester back-mounting film with permanent rubber-based adhesive on both sides, sold separately. Printed graphics and display boards are not included.
51 in x 150 ft: PP5651L150
MACtac PERMACOLOR Gemini XT clear is a double-coated mounting film for back-mounting photographs and digital graphics to compatible display boards. Aggressive rubber-based permanent adhesive on both sides provides a quick, strong bond. A white polycoated paper liner protects the adhesive and supports processing through cold-roll laminators. The clear 0.5-mil polyester carrier provides a transparent mounting construction. Supplied as a 51-inch by 150-foot roll. Prepare clean mounting surfaces and test the print-and-board combination before use. The February 2017 performance guide gives an up-to-one-year outdoor estimate, while the September 2026 catalog lists three years. Confirm the current construction and service requirements; exposure can shorten life.
54 in x 150 ft: PP5654L150
MACtac PERMACOLOR Gemini XT clear is a double-coated mounting film for back-mounting photographs and digital graphics to compatible display boards. Aggressive rubber-based permanent adhesive on both sides provides a quick, strong bond. A white polycoated paper liner protects the adhesive and supports processing through cold-roll laminators. The clear 0.5-mil polyester carrier provides a transparent mounting construction. Supplied as a 54-inch by 150-foot roll. Prepare clean mounting surfaces and test the print-and-board combination before use. The February 2017 performance guide gives an up-to-one-year outdoor estimate, while the September 2026 catalog lists three years. Confirm the current construction and service requirements; exposure can shorten life.
Application and construction qualifications
Use for back-mounting prints to compatible boards. Clear is not a verified optical-grade claim or approval for face mounting. This is mounting adhesive film, not direct-print media.
The 0.5-mil carrier-only reference and the historical guide’s 3-mil carrier-plus-adhesive reference are different measurements. Neither is an established total-product thickness, and no adhesive thickness is calculated by subtraction.
A PP5600 guide line that instead names PP5000 does not establish face-mount approval. Do not interpret permanent/permanent labels as installation side-order instructions. Confirm the current construction and application requirements before production.

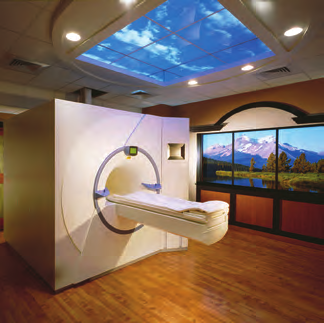

Supplementary family application example
Image: Mactac. Source: manufacturer literature hosted by MyBinding; family mapping confirmed in Mactac IdeaBook hosted by Steadfast Paper.
Manufacturer resources
- Gemini XT PP5600 performance guide (PDF, version 7, February 2017)
- Mactac Graphic Solutions catalog (PDF, MAC2974 09/26), page 24: PP5600 exact roll options
The guide is a dated back-mounting reference. Its recommendation that names PP5000 does not establish face-mount approval for PP5600. Clear is not an optical-grade claim. Carrier-only and carrier-plus-adhesive measurements remain distinct, and the guide/catalog outdoor-life difference remains unresolved. Follow the board-preparation and cold-roll limitations and test the intended assembly before production.
These references do not replace the source qualifications above or testing of the complete intended assembly.
