MACtac
MACtac PERMACOLOR Gemini XT PP5000 Opaque White Mounting Film, 51 or 54 in x 150 ft
MACtac PERMACOLOR Gemini XT PP5000 Opaque White Mounting Film, 51 or 54 in x 150 ft
SKU:PP5051L150
Couldn't load pickup availability
Choose a 51- or 54-inch width. Each option is one full 150-foot roll of opaque white back-mounting film with permanent rubber-based adhesive on both sides, sold separately. Printed graphics and display boards are not included.
51 in x 150 ft: PP5051L150
MACtac PERMACOLOR Gemini XT opaque white is a double-coated mounting film for back-mounting photographs and digital graphics to compatible display boards. Aggressive rubber-based permanent adhesive on both sides provides a quick, strong bond. A white polycoated paper liner protects the adhesive and supports processing through cold-roll laminators. The opaque white carrier helps block the underlying surface from showing through. Supplied as a 51-inch by 150-foot roll. Prepare clean mounting surfaces and test the print-and-board combination before use. The February 2017 performance guide gives an up-to-one-year outdoor estimate, while the September 2026 catalog lists three years. Confirm the current construction and service requirements; exposure can shorten life.
54 in x 150 ft: PP5054L150
MACtac PERMACOLOR Gemini XT opaque white is a double-coated mounting film for back-mounting photographs and digital graphics to compatible display boards. Aggressive rubber-based permanent adhesive on both sides provides a quick, strong bond. A white polycoated paper liner protects the adhesive and supports processing through cold-roll laminators. The opaque white carrier helps block the underlying surface from showing through. Supplied as a 54-inch by 150-foot roll. Prepare clean mounting surfaces and test the print-and-board combination before use. The February 2017 performance guide gives an up-to-one-year outdoor estimate, while the September 2026 catalog lists three years. Confirm the current construction and service requirements; exposure can shorten life.
Application and construction qualifications
Use for back-mounting prints to compatible boards, not second-surface face mounting. This is mounting adhesive film, not direct-print media.
The current catalog identifies PET while the February 2017 guide identifies polypropylene; the carrier polymer is not confirmed here. The catalog’s 1.5-mil carrier-only reference and the guide’s 5-mil carrier-plus-adhesive reference are different measurements, not an established total-product thickness.
Do not interpret permanent/permanent labels as installation side-order instructions. Confirm the current construction and application requirements before production.

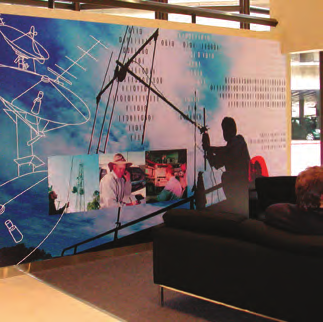

Supplementary family application example
Image: Mactac. Source: manufacturer literature hosted by MyBinding; family mapping confirmed in Mactac IdeaBook hosted by Steadfast Paper.
Manufacturer resources
- Gemini XT PP5000 performance guide (PDF, version 6, February 2017)
- Mactac Graphic Solutions catalog (PDF, MAC2974 09/26), page 24: PP5000 exact roll options
The guide is a dated back-mounting reference, not direct-print or face-mount approval. Manufacturer sources differ on carrier polymer, caliper and outdoor durability. The carrier-only and carrier-plus-adhesive measurements are different; no value is substituted here. Follow the board-preparation and cold-roll limitations, test the intended assembly, and confirm the current roll specification before production.
These references do not replace the source qualifications above or testing of the complete intended assembly.
Selecting your material
Selecting your material
Select every available option, then check the size, color, SKU and price before adding to your cart. Product specifications and application information are included in the description above.
Need help matching a material or choosing a size? Call 330-747-6139 or text us.
Shipping & order questions
Shipping & order questions
Review the shipping and availability details for your selected item. For oversized rolls, unusual quantities or a delivery deadline, contact us before ordering so we can confirm the details.
