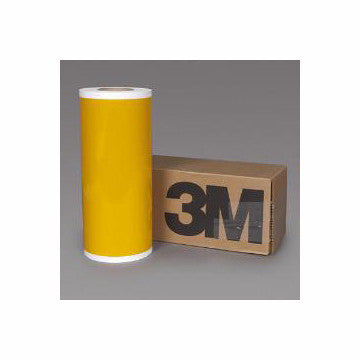

3M 680 Scotchlite™ Reflective Graphic Film - 24" X 30' Roll
3M 680 Scotchlite™ Reflective Graphic Film - 24" X 30' Roll
SKU:6800-2403-010
Couldn't load pickup availability
FDC 6800 Series is 3M 680 Scotchlite™ Reflective Graphic Film. These films are permanent, enclosed lens, retroreflective, engineer grade films that feature flexibility and versatility with slideable, pressure-activated adhesive.
Film Technology - Retroreflective
Film Thickness - 7.0 mil.
Media Color Finish - Gloss
Blockout -Yes
Outdoor Durability - 3M's April 2022 bulletin estimates 9 years for unprinted vehicle graphics without graphic protection on flat, vertical outdoor surfaces. This is a service-life estimate, not a finished-graphic warranty.
Adhesive / Color - Pressure Activated, Slideable / White
Liner - Polyethylene Coated LF
Conformability - Flat with rivets, moderate compound curves, corrugated surfaces
Application and care resources
For this permanent 680 film, use the 680 entries in the shared bulletin, not the removable 680CR instructions. Apply dry. Avoid lifting it sharply during positioning, which can damage the reflective layer. The bulletin covers cutting, substrate preparation and protection; its color table is not a promise of current stock.
Reflective appearance alone does not establish suitability for a regulated sign or vehicle-marking project. Check the exact required specification and finished construction before use.
- 680 / 680CR product bulletin, Revision T, April 2022 (PDF)
- 3M graphic installation guide (PDF; use the product-specific dry method)
- 3M graphic maintenance and cleaning guide (PDF)
Compatible graphic-protection option
3M lists 8519 luster overlaminate as a graphic-protection option. The linked width matches this film width. Check the laminate length against the film quantity you plan to finish. These are separate products, not a preconfigured or warranted kit; verify the complete ink, finish and application system.
- 24 in × 50 yd 8519 luster overlaminate (ask about availability)
Selecting your material
Selecting your material
Select every available option, then check the size, color, SKU and price before adding to your cart. Product specifications and application information are included in the description above.
Need help matching a material or choosing a size? Call 330-747-6139 or text us.
Shipping & order questions
Shipping & order questions
Review the shipping and availability details for your selected item. For oversized rolls, unusual quantities or a delivery deadline, contact us before ordering so we can confirm the details.
